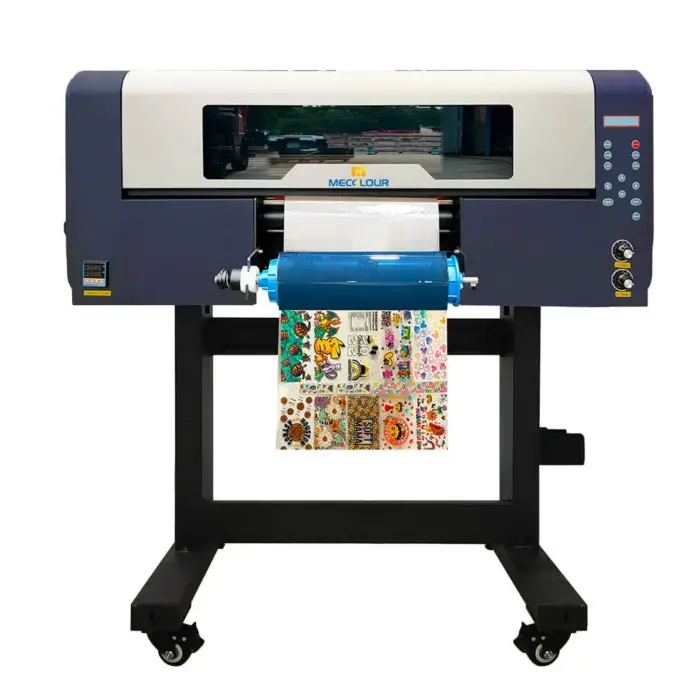

UV DTF Printer (30cm)

UV DTF Printing to hard substrate is typically done via a UV printing process, such that the printed image is cured (UV curable ink) and strongly adheres to the substrate for both scratchability, washability and sun-resistant purposes.

ENQUIRY!

Category: UV DTF Printing

Description
Features

Description

The UV DTF Printer is a cutting-edge solution for creating vibrant and durable designs on a wide range of hard surfaces. With its compact 30cm printing width, this printer is perfect for both small-scale and commercial projects, allowing you to produce high-quality prints with exceptional precision.
UV DTF printer can be a printer on wood, metal, acrylic and so forth materials, and even with a wider application.

Parameter

Head model: I1600
Head qty: 2
Print speed(unidirection): 8PASS 1 .5m²/h; 10PASS 1 .2m²/h
Printing media: A、B film
Ink type: UV ink
Transmission Interface: Gigabit Network Port transmission
Media width: 300mm
Input voltage: 220V
Print height: 0~12mm printing high from 0-12mm adustable
Laminating method: Constant temperature heating(automatic)
Feeding and take up system: adjustable resistance feeding and taking up
Rip software: Maintop6.1、PP
File format: PDF、JPEG、TIFF
Machine weigh (Gross weight): 80KG
Machine packing size(L*W*H): 1180*750*650mm

Features

Highly sensitive carriage collision avoidance system.
Hoson network port board,high precision,fast speed,bright and delicate printing picture.
Printing and lamination is completed once,automatic film peeling and automatic lamination.
Personalized customization,can print AB film.
